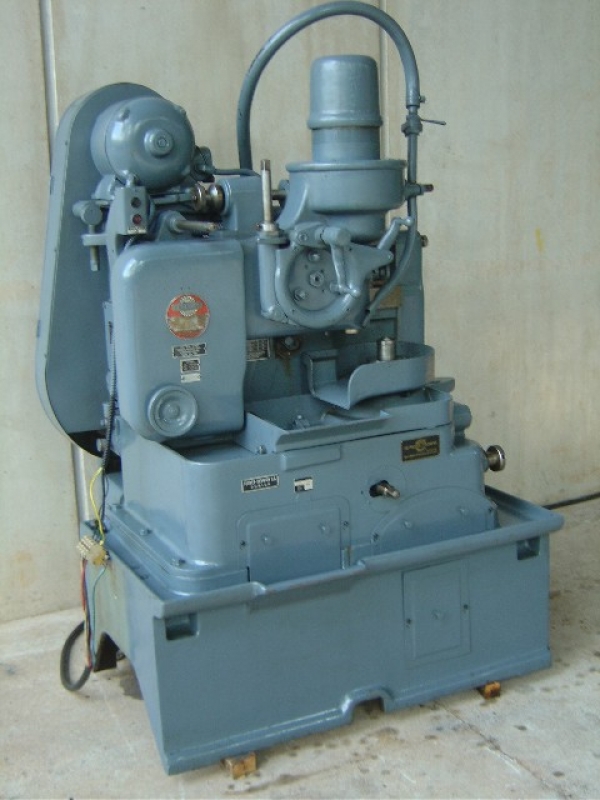

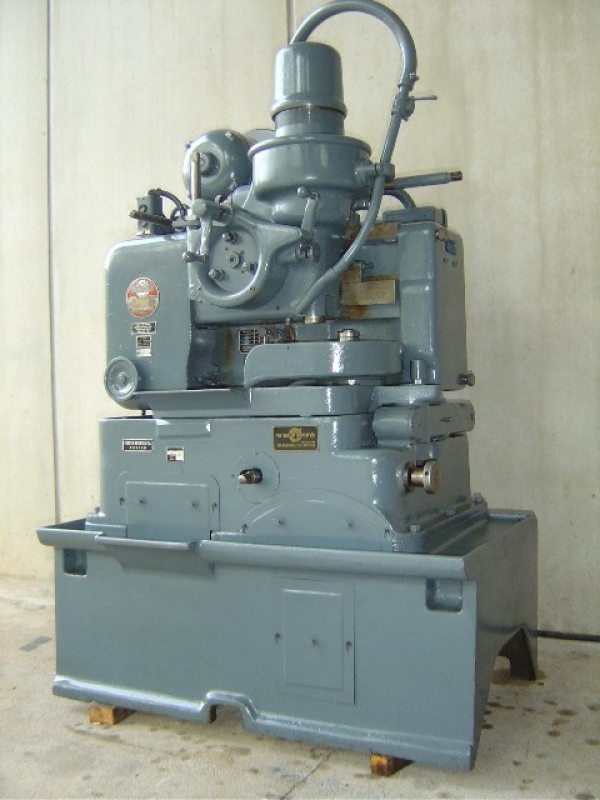

FELLOWS GEAR SHAPING MACHINE MODEL 7
MACHINE SPECIFICATIONS:
Maximum Pitch Diameter External 7"
Maximum Pitch Diameter Internal 5-1/2"
Maximum Face Width External 1-1/2"
Maximum Face Width Internal 1"
Maximum Diametral Pitch
-For Spur Gears 6
-For Helical 6/8
Maximum Helix Angle With Standard Guides 45 Deg.
Approximate Weight 3,200 lbs
MACHINE IS EQUIPPED WITH THE FOLLOWING:
0" Riser
1-1/2" Stroke
Solid Spindle
Updated Electrics
1.5" Table Bore
Setup of Change Gears
