MODEL.............................................................................M2-9-D
DRILL CAPACITY.............................................................. 1/8" TO 3/4"
MAXIMUM DRILLING STROKE................................................................9"
NUMBER OF SPINDLES......................................................................2
DRILLING SPEED RANGE......................................................700 TO 5000 RPM
CURRENT SPEED SETUP..............................................................2700 RPM
FEED RATES................................................................3/8 TO 5000 RPM
DISTANCE BETWEEN SPINDLES.............................................................15"
TURRET CROSS SLIDE TRAVEL..............................................................6"
MAXIMUM COOLANT PRESSURE.........................................................1000 PSI
GALLONS PRA MINUTE.....................................................................12
COOLANT TANK CAPACITY............................................................175 GAL.
FLOOR TO SPINDLE..................................................................43-1/2"

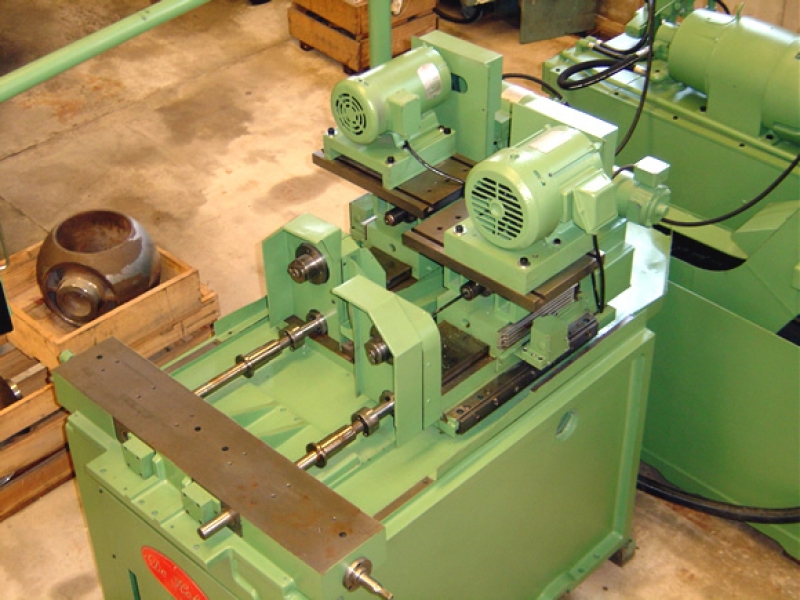

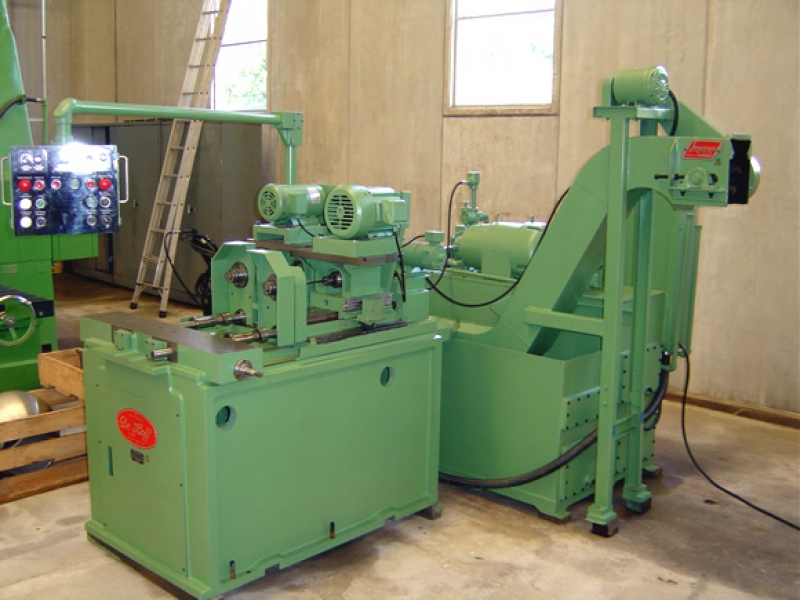

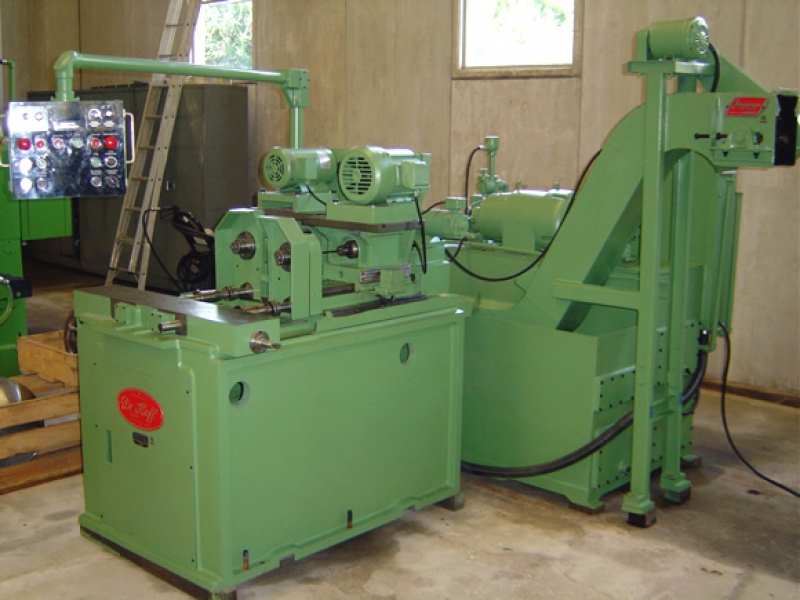

2) Cross Sliding Auto-Indexing Work Holding Turrets High Pressure Coolant Unit Spindle Head Ball Screws W/D.C Drive Motors

(2) 3 Horsepower Spindle Motors
10 Horsepower Coolant Motors
